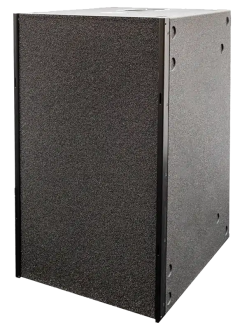

SAM18A
Product Specifications
- AES Power: 2400 W / 8 Ω
- Bandwidth (-6dB): 40 Hz to 500 Hz
- Sensitivity: 131 dB / 1W @1m
- SPL MAX Level: 135 dB
- Directivity: 180° cardioid
- LF: 1 x 18’’ B&C ITALY
- Rigging Integral 4 points flying system
- Connections: 2 Speakon NL4MP
- 15/30 mm baltic birch wood
- Finished polyurethane painting
- Size: H700 x D790 x W540 mm
- Weight: 58 kg
- POWER CIRCUIT
- Power (RMS): 2400W
- Output topology: Class D
- Connection technology: Dante
- Impedance: 8Ω-16Ω
- Cooling method: Effective fan cooling
- Input sensitivity: 1V
- Total harmonic distortion: ≤1% @ 1kHz, full power 8Ω
- DSP control: USB and RS-485
- Signal processing: DSP, mute, polarity, gain, delay, limiter, mixer, EQ, XOver
- Ouput connector: 1xNeutrik Speakon NL4MP; LF 1 + 1- / HF 2 + 2-
- Audio input: 2 x XLR
- AC power input: PowerCON NAC3MPA
- Power source: 220V ~ 50Hz
